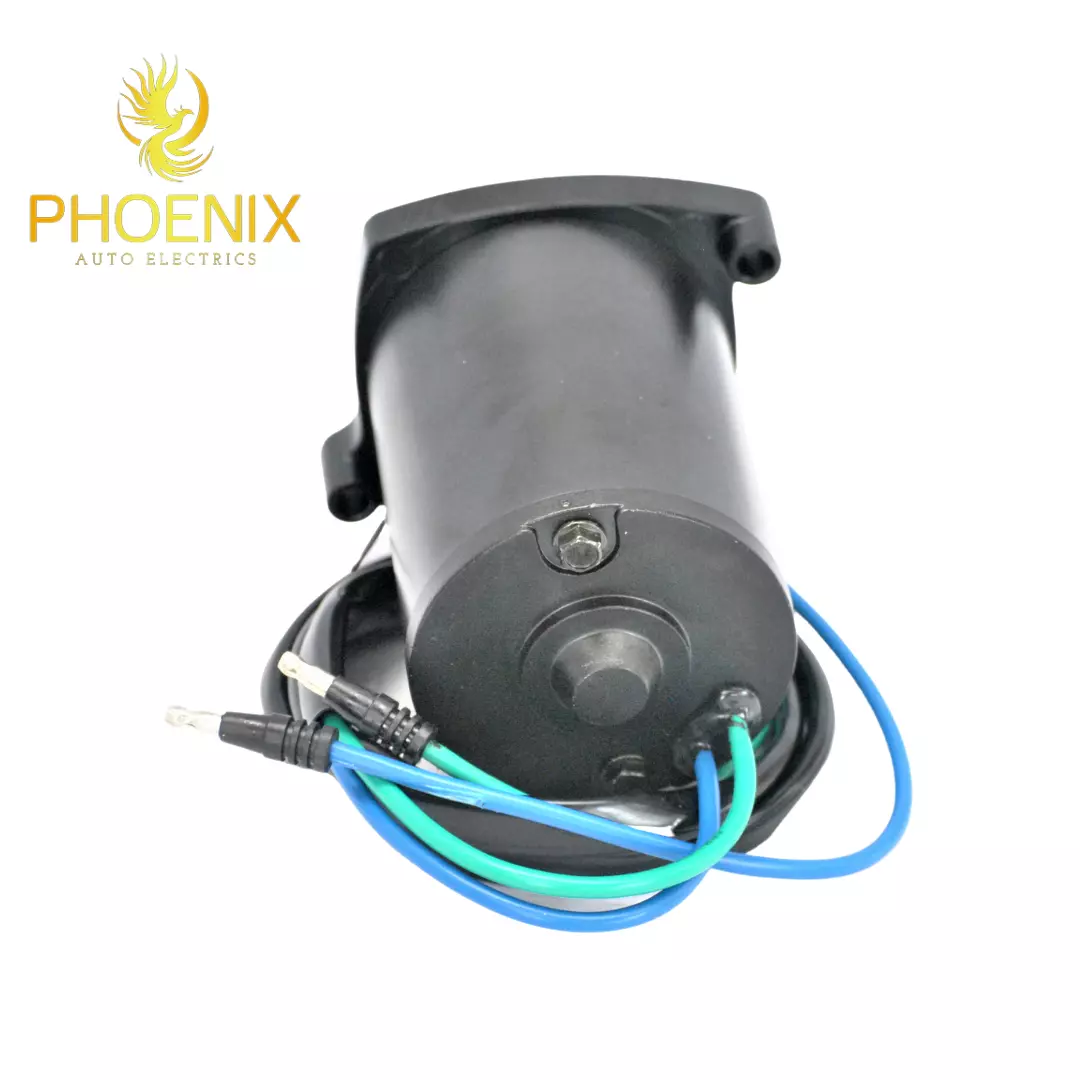

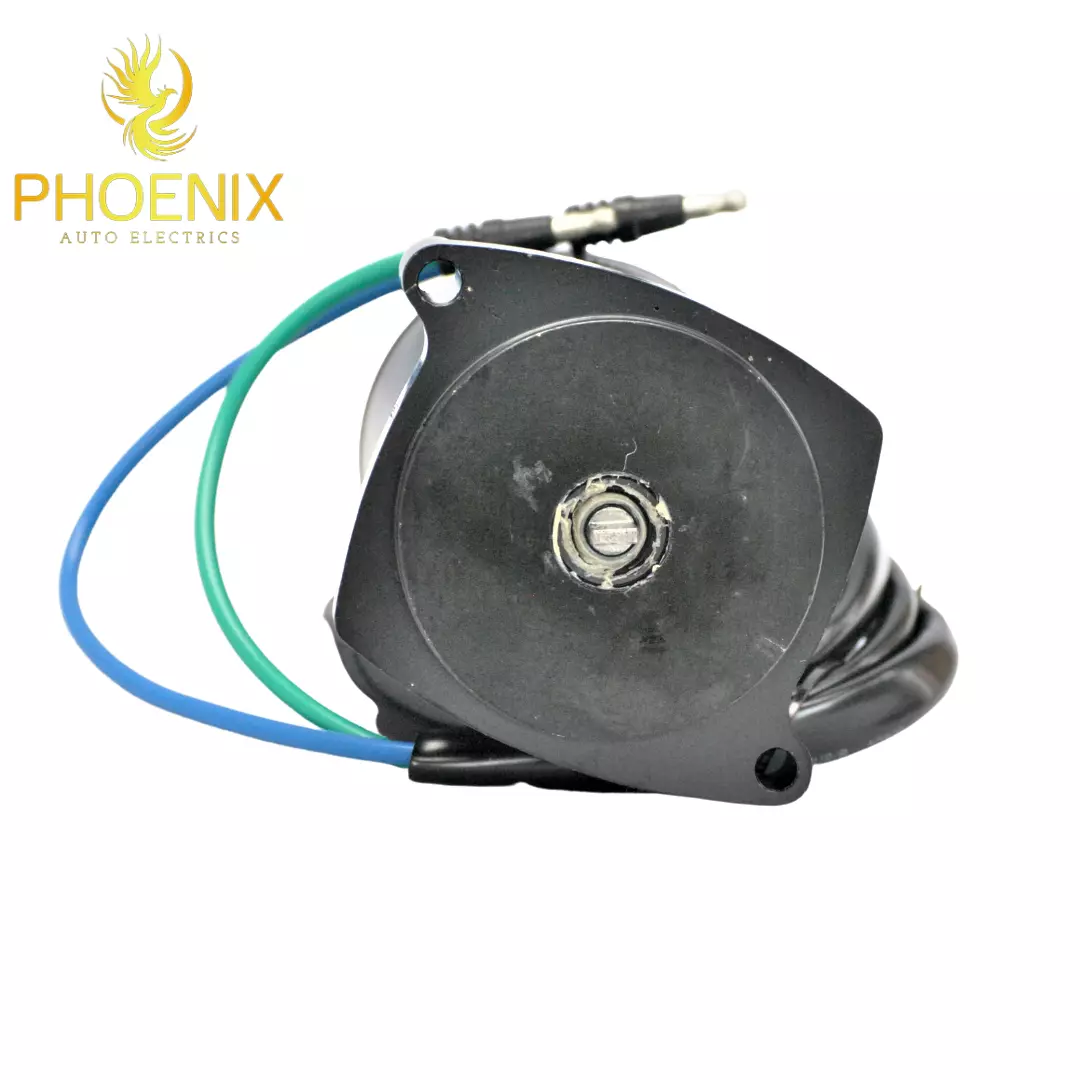

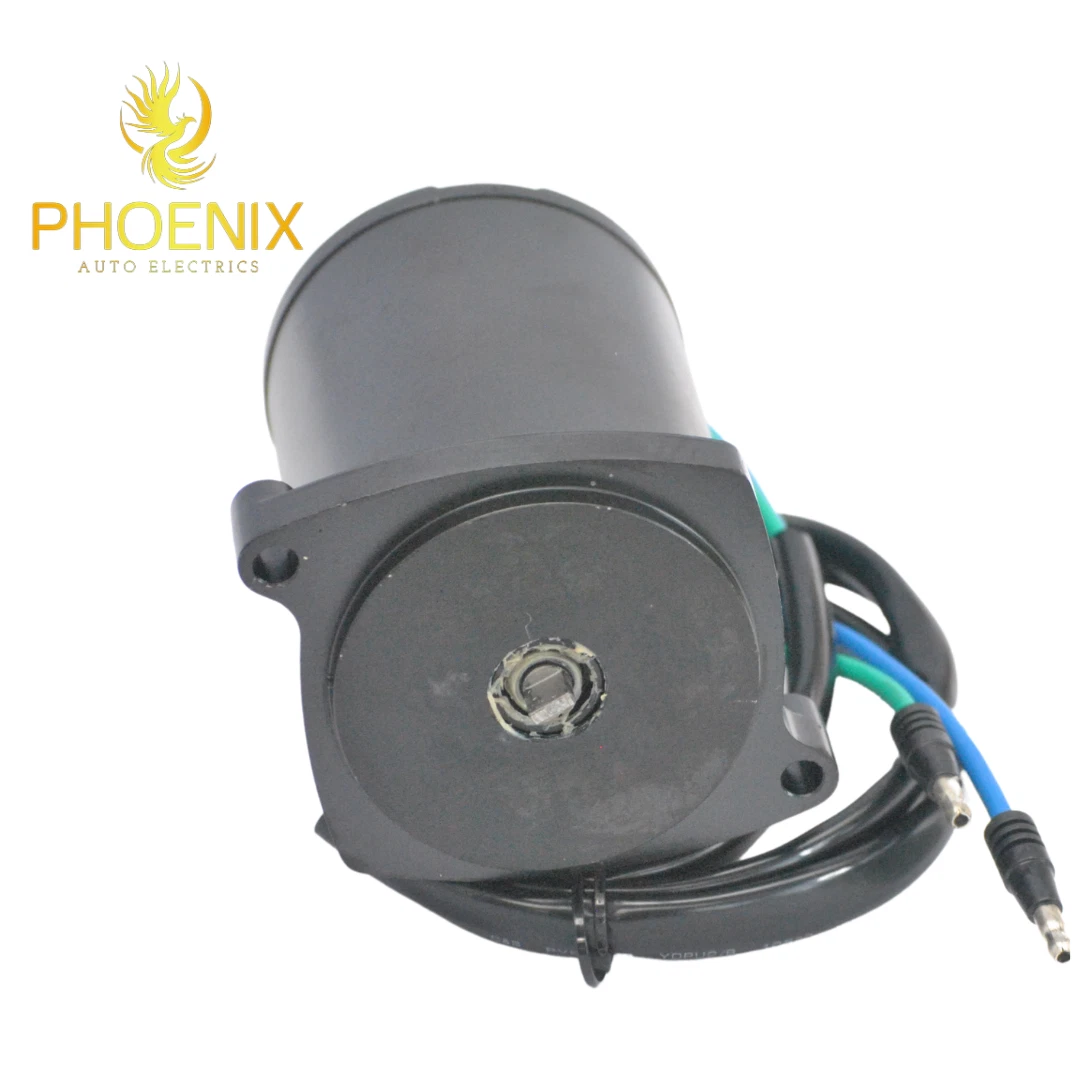

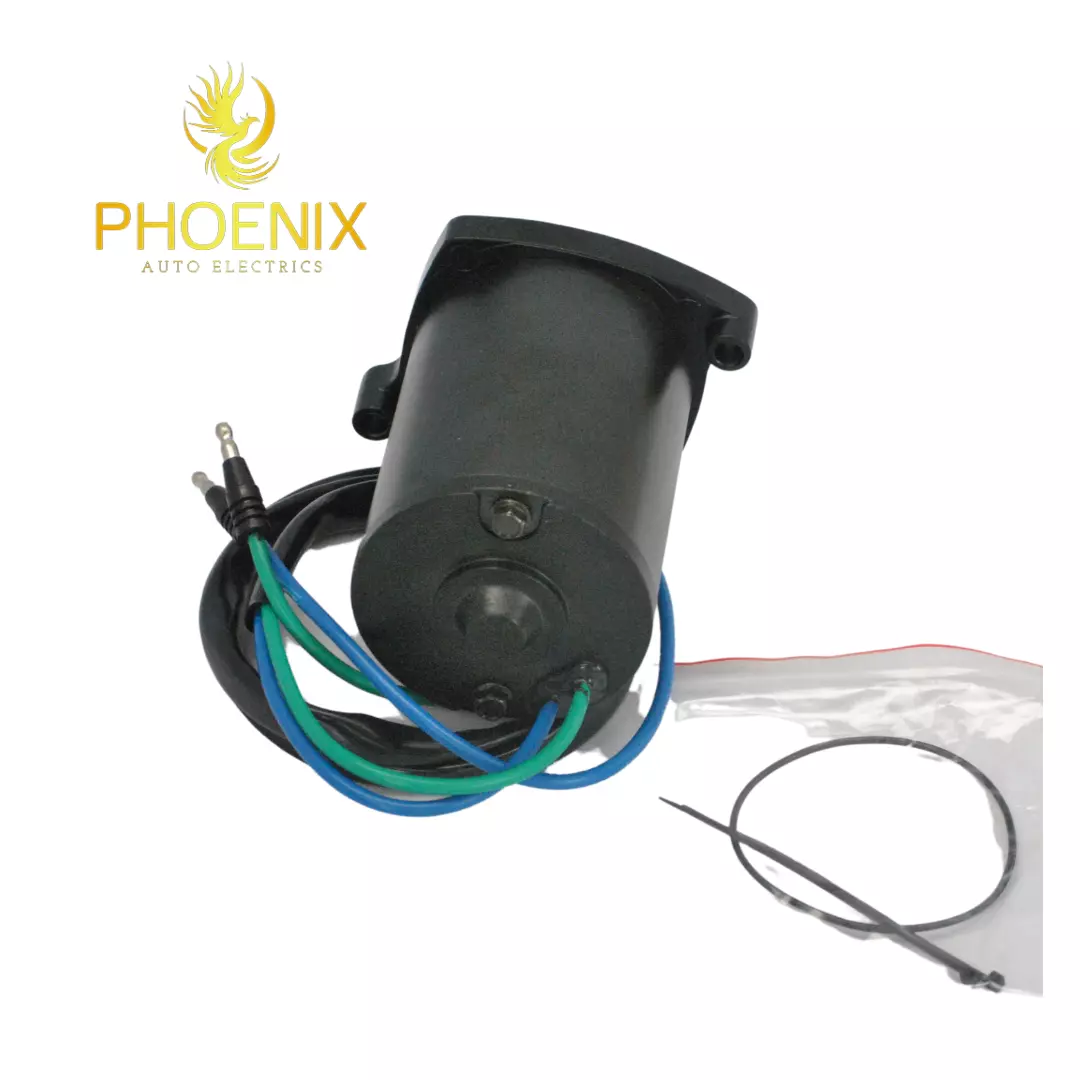

Tilt Trim Motor for Mercury Mariner, Force 50hp, 60hp, 70, 80hp 125hp - 809885A1, 809885A2
Tilt Trim Motor for Mercury Mariner, Force 50hp, 60hp, 70, 80hp 125hp - 809885A1, 809885A2 - Image 2
Tilt Trim Motor for Mercury Mariner, Force 50hp, 60hp, 70, 80hp 125hp - 809885A1, 809885A2 - Image 3
Tilt Trim Motor for Mercury Mariner, Force 50hp, 60hp, 70, 80hp 125hp - 809885A1, 809885A2 - Image 4

Tilt Trim Motor for Mercury Mariner, Force 50hp, 60hp, 70, 80hp 125hp – 809885A1, 809885A2

SKU: 10827

AUD199.95

Category:
Product information
Weight 4.72 lbs
Dimensions 6.89 in
Description
Field Value
Description Tilt/Trim Motor
OEM(s) Mercury Marine
Voltage 12
Condition New
Rotation Reversible
Outer Diameter (OD) 2.866 in / 72.8 mm
Length 6.89 in / 175 mm
Terminal 1 Size Wire
Terminal 2 Size Wire
Shaft Hollow Hex Shaft
Current Type DC
Warranty 1 Year
Notes 2-Wire Connection
Includes (2) 3-1/2 Foot Wire Harness With Bullet Connectors and Hardware Kit With O-Ring
Application Late Model 50- 150HP Mercury & Mariner Outboards with Single Ram
Weight 4.72 lbs / 2.15 kg

Application

Manufacturer Model Year HP
FORCE 1201 1990 120HP
FORCE 1201 1991 120HP
FORCE 1201 1992 120HP
FORCE 1208 1990 120HP
FORCE 1208 1991 120HP
FORCE 1208 1992 120HP
FORCE 120ELPT 1993 120HP
FORCE 120ELPT 1994 120HP
FORCE 120ELPT 1996 120HP
FORCE 120ELPT 1997 120HP
FORCE 120ELPT 1998 120HP
FORCE 120ELPT 1999 120HP
FORCE 120EXLPT 1993 120HP
FORCE 120EXLPT 1994 120HP
FORCE 120EXLPT 1996 120HP
FORCE 120EXLPT 1997 120HP
FORCE 120EXLPT 1998 120HP
FORCE 120EXLPT 1999 120HP
FORCE 1501 1989 150HP
FORCE 1501 1990 150HP
FORCE 1501 1991 150HP
FORCE 1501 1992 150HP
FORCE 1508 1989 150HP
FORCE 1508 1990 150HP
FORCE 1508 1991 150HP
FORCE 1508 1992 150HP
FORCE 150ELPT 1993 150HP
FORCE 150ELPT 1994 150HP
FORCE 150EXLPT 1993 150HP
FORCE 150EXLPT 1994 150HP
FORCE 407 1992 40HP
FORCE 408 1992 40HP
FORCE 40EL 1993 40HP
FORCE 40EL 1994 40HP
FORCE 40ELPT 1993 40HP
FORCE 40ELPT 1994 40HP
FORCE 507 1991 50HP
FORCE 507 1992 50HP
FORCE 508 1991 50HP
FORCE 508 1992 50HP
FORCE 50EL 1993 50HP
FORCE 50EL 1994 50HP
FORCE 50ELPT 1993 50HP
FORCE 50ELPT 1994 50HP
FORCE 706 1991 70HP
FORCE 706 1992 70HP
FORCE 708 1991 70HP
FORCE 708 1992 70HP
FORCE 70EL 1993 70HP
FORCE 70EL 1994 70HP
FORCE 70EL 1995 70HP
FORCE 70ELPT 1993 70HP
FORCE 70ELPT 1994 70HP
FORCE 70ELPT 1995 70HP
FORCE 75EL 1996 75HP
FORCE 75EL 1997 75HP
FORCE 75EL 1998 75HP
FORCE 75EL 1999 75HP
FORCE 75ELPT 1996 75HP
FORCE 75ELPT 1997 75HP
FORCE 75ELPT 1998 75HP
FORCE 75ELPT 1999 75HP
FORCE 903 1991 90HP
FORCE 903 1992 90HP
FORCE 906 1991 90HP
FORCE 906 1992 90HP
FORCE 908 1991 90HP
FORCE 908 1992 90HP
FORCE 90EL 1993 90HP
FORCE 90EL 1994 90HP
FORCE 90ELPT 1993 90HP
FORCE 90ELPT 1994 90HP
FORCE 90ELPT 1996 90HP
FORCE 90ELPT 1997 90HP
FORCE 90ELPT 1998 90HP
FORCE 90ELPT 1999 90HP
FORCE 90EXLPT 1993 90HP
FORCE 90EXLPT 1994 90HP
FORCE 90EXLPT 1996 90HP
FORCE 90EXLPT 1997 90HP
FORCE 90EXLPT 1998 90HP
FORCE 90EXLPT 1999 90HP
MERCURY MARINE 100ELPTO 2-Stroke 1988 100HP
MERCURY MARINE 100ELPTO 2-Stroke 1989 100HP
MERCURY MARINE 100ELXLPTO 2-Stroke 1988 100HP
MERCURY MARINE 100ELXLPTO 2-Stroke 1989 100HP
MERCURY MARINE 115ELPTO 2-Stroke 1989 115HP
MERCURY MARINE 115EXLPTO 2-Stroke 1989 115HP
MERCURY MARINE 35ELO 1987 35HP
MERCURY MARINE 35ELO 1988 35HP
MERCURY MARINE 35ELO 1989 35HP
MERCURY MARINE 35ELPTO 1987 35HP
MERCURY MARINE 35ELPTO 1988 35HP
MERCURY MARINE 35ELPTO 1989 35HP
MERCURY MARINE 35EO 1987 35HP
MERCURY MARINE 35EO 1988 35HP
MERCURY MARINE 35EO 1989 35HP
MERCURY MARINE 35M 1987 35HP
MERCURY MARINE 35M 1988 35HP
MERCURY MARINE 35M 1989 35HP
MERCURY MARINE 35ML 1987 35HP
MERCURY MARINE 35ML 1988 35HP
MERCURY MARINE 35ML 1989 35HP
MERCURY MARINE 40ELHPTO 2-Stroke 1989 40HP
MERCURY MARINE 40ELO 2-Stroke 1989 40HP
MERCURY MARINE 40ELPTO 2-Stroke 1989 40HP
MERCURY MARINE 50ELO 2-Stroke 1988 50HP
MERCURY MARINE 50ELO 2-Stroke 1989 50HP
MERCURY MARINE 50ELPTO 2-Stroke 1988 50HP
MERCURY MARINE 50ELPTO 2-Stroke 1989 50HP
MERCURY MARINE 60ELO 2-Stroke 1988 60HP
MERCURY MARINE 60ELO 2-Stroke 1989 60HP
MERCURY MARINE 60ELPTO 2-Stroke 1988 60HP
MERCURY MARINE 60ELPTO 2-Stroke 1989 60HP
MERCURY MARINE All Models All 30-125HP
MERCURY MARINE All Models All 50-120HP

Reference

Lester 10827
Mercury Marine 809885A1, 809885A2, 809885T2, 811674, 831447, 885654T1, 885654T2
