Hydraulic DC Pump Motor for Monarch JS Barnes & Many Applications 2200478 2200776 MUE6107

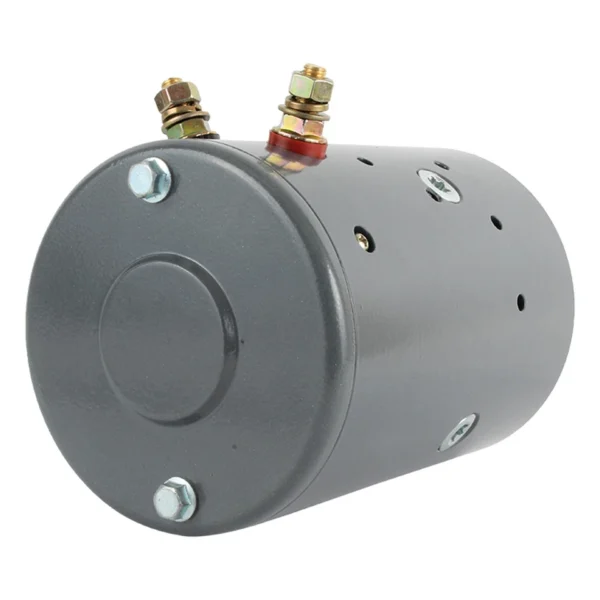

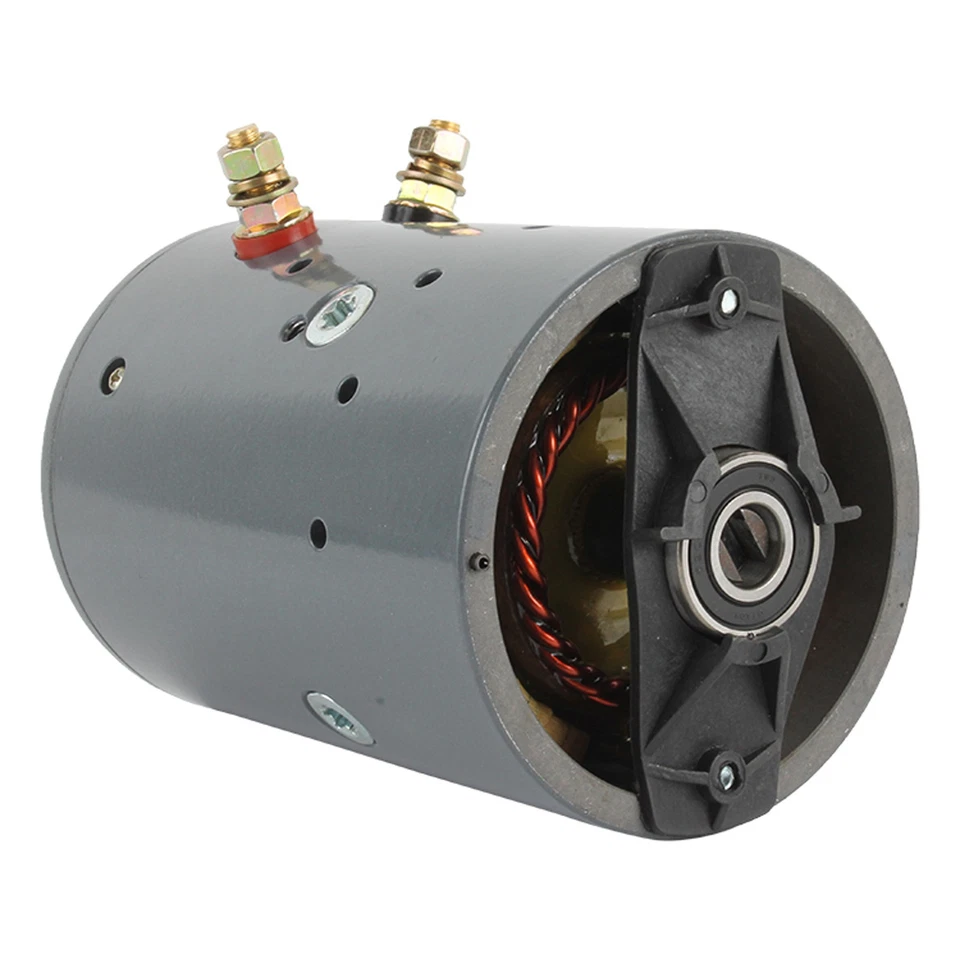

Hydraulic DC Pump Motor for Monarch JS Barnes & Many Applications 2200478 2200776 MUE6107 - Image 2

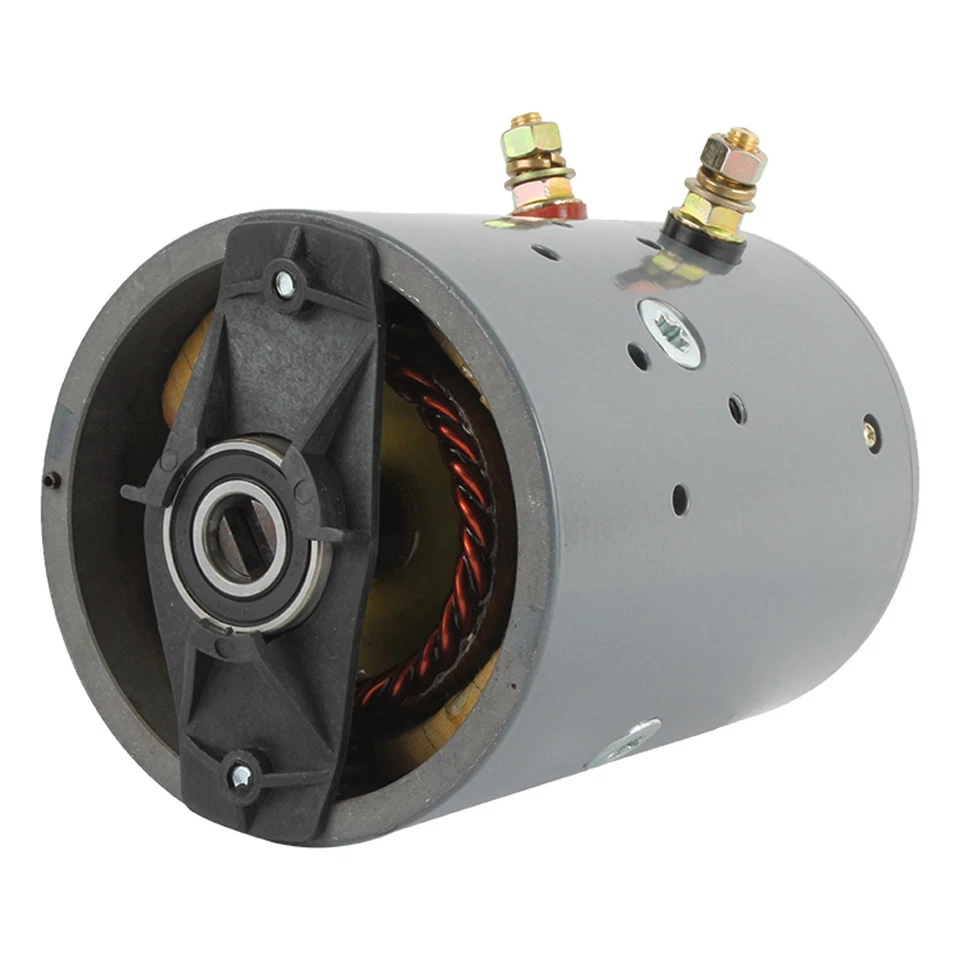

Hydraulic DC Pump Motor for Monarch JS Barnes & Many Applications 2200478 2200776 MUE6107 - Image 3

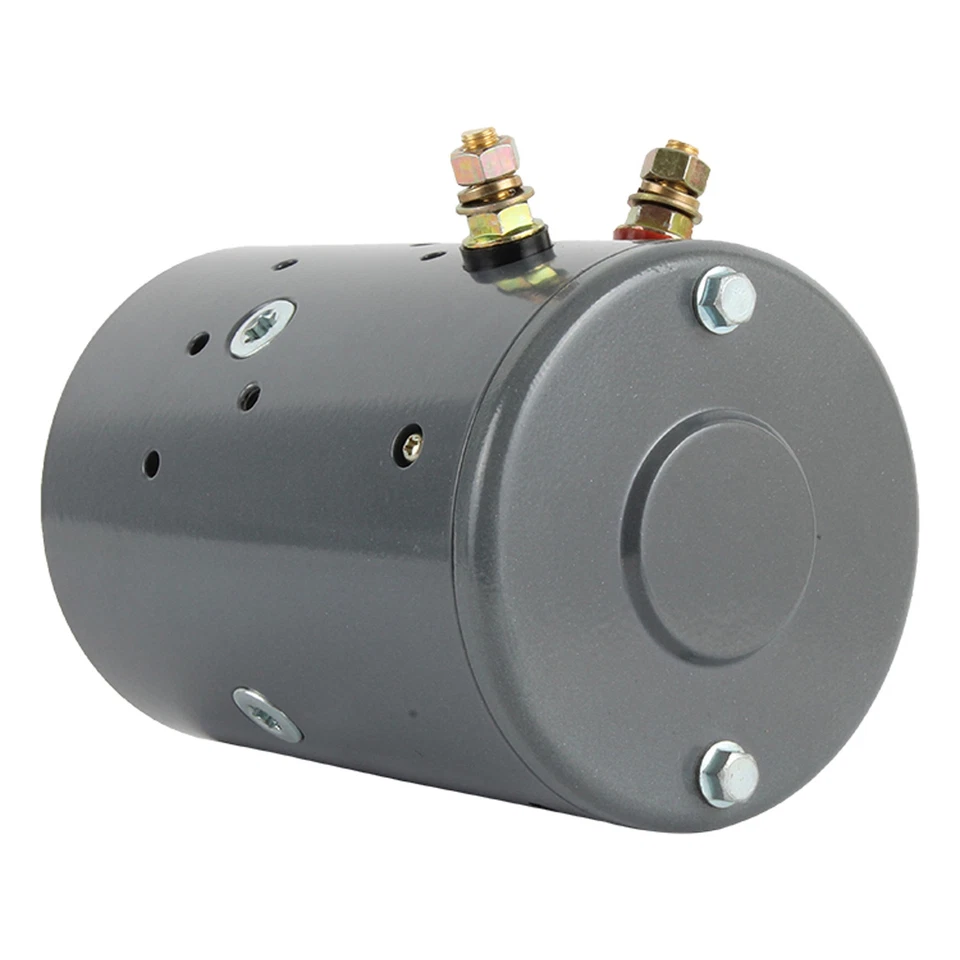

Hydraulic DC Pump Motor for Monarch JS Barnes & Many Applications 2200478 2200776 MUE6107 - Image 4

Hydraulic DC Pump Motor for Monarch JS Barnes & Many Applications 2200478 2200776 MUE6107

SKU: 10752

Original price was: AUD428.95.Current price is: AUD328.95.

Out of stock

Category:
Product information
Weight 16.1 lbs
Dimensions 7.236 × 8 × 8 in
Description
Description: Pump Motor
OEM(s) Replaces: Ametek, Monarch/Bucher, Prestolite
Voltage: 12
Power: 1.7kW / 2.28HP
Number of Fields: 2
Condition: New
Rotation: CCW
OD: 4.5in / 114.3mm
Shaft OD: 0.591in / 15mm
Length: 7.236in / 183.8mm
Terminal 1 Size: 5/16-24
Shaft: Slotted
Current Type: DC
Warranty: 1 Year
Notes: Double Ball Bearings
Thru Bolts at 11:00 & 5:00
M6-1.0 Solenoid Mounting Holes
Application: John S. Barnes, Monarch Hydraulics, Waltco & Other Applications
Weight: 16.1 lbs / 7.32 kg

Reference

Prestolite 46-2126, 46-2414, 46-2559, 46-2595, 46-2624, 46-2662, 46-2782, 46-3553, 46-3571, 46-3578, 46-3620, 46-3621, 46-4057, MDY6121, MDY6132S, MUE6102BS, MUE6107, MUE6108S, MUE6201, MUE6201BS, MUE6201S, MUE6301, MUE6301S
Lester 10752
JS Barnes 2200478 2200727 2200776 2200820 2200849
STRATOLINE 80-10752 8010752
WESTERN MOTOR W-8999-DBB W-8999D W8999DBB W8999

Application

John S. Barnes, Monarch Hydraulics, Waltco & Other Applications
